Equipment, parts & service
The right material at the right place at the right time. thenex supplies material handling equipment, spare parts and services that keep transport routes efficient and every station supplied.
Range
Products
Feeders
Customised to your requirements, for efficient process control and production monitoring.
| Accuracy | ± 0.5 % |
|---|---|
| Belt width | up to 2,000 mm |
| Load cells | IP68 |
| Features | rubber-lagged drive pulley; lateral belt replacement without removing pulleys |
Loaders
Platforms and feeder devices for loading bagged and boxed goods: a diverter system passes products directly or via a carriage onto slewing/luffing telescopic conveyors on either side.

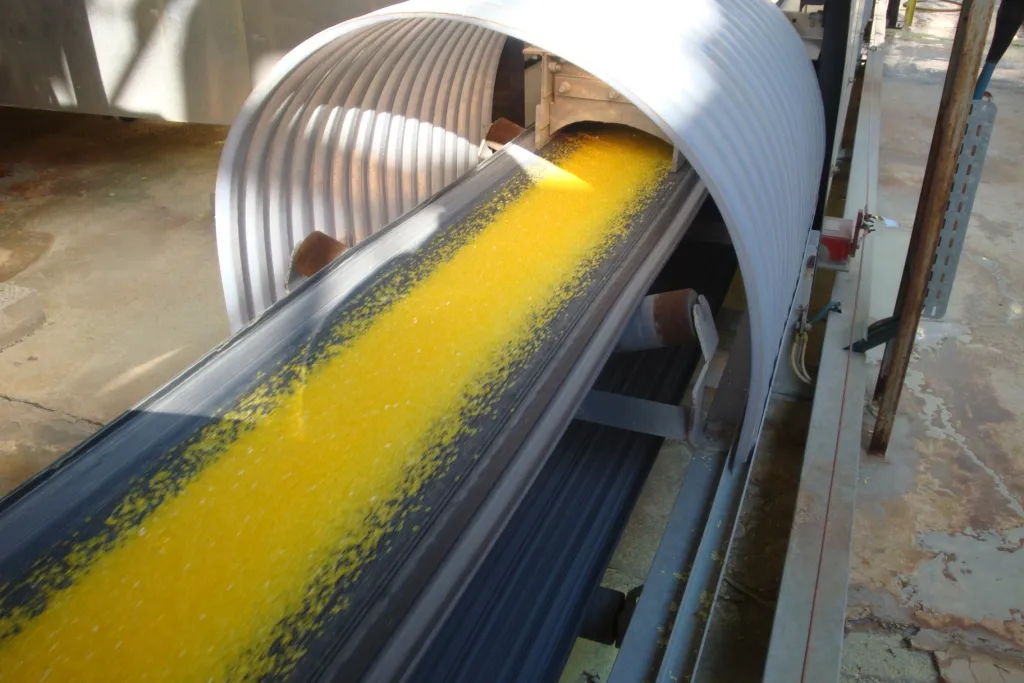

Conveyors
Heavy-duty conveyors designed to your technical requirements and international standards.
| Capacity | up to 1,500 t/h |
|---|---|
| Belt width | 500 – 2,000 mm |
| Drive | motor, gear reducer; fluid coupling above 11 kW |
| Equipment | belt cleaners, lateral guards, local push-button stations, line automation |

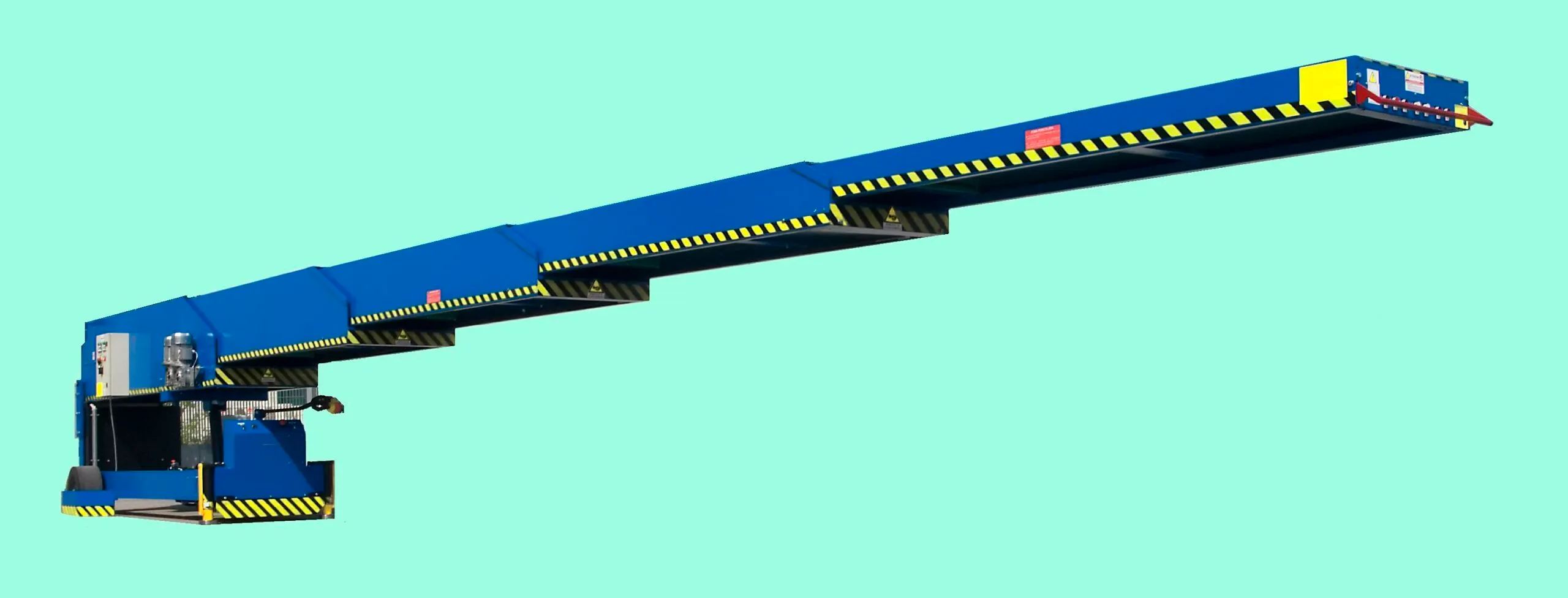

Conveyors
For loading and unloading non-palletised goods — bags, cartons, bales, tyres, panels — from warehouse to truck or container, without lifting.
| Belt width | 600 mm standard, up to 2,000 mm |
|---|---|
| Material | carbon steel |
Conveyors
The belt is formed into a closed tube between head and tail pulley — on both carrying and return run — to convey material enclosed.
| Capacity | up to 1,500 t/h |
|---|---|
| Pipe diameter | 150 – 400 mm |
| Length and height | on request |
Elevators
Buckets on chain or belt running over head and tail pulleys, enclosed in head, intermediate and tail casings; the take-up compensates changes in chain or belt length.
Chutes
For loading bulk material onto trucks, trains and ships or into storage, with inner cones and an outer bellows to limit dust. Hoist with lifting cables outside the material flow; double bellows available for non-abrasive materials.
| Capacity | up to 8,000 t/h |
|---|---|
| Inlet diameter | 250 – 900 mm |
| Material | carbon steel, stainless steel, wear-resistant lining |
| Temperature | −40 °C to +120 °C |

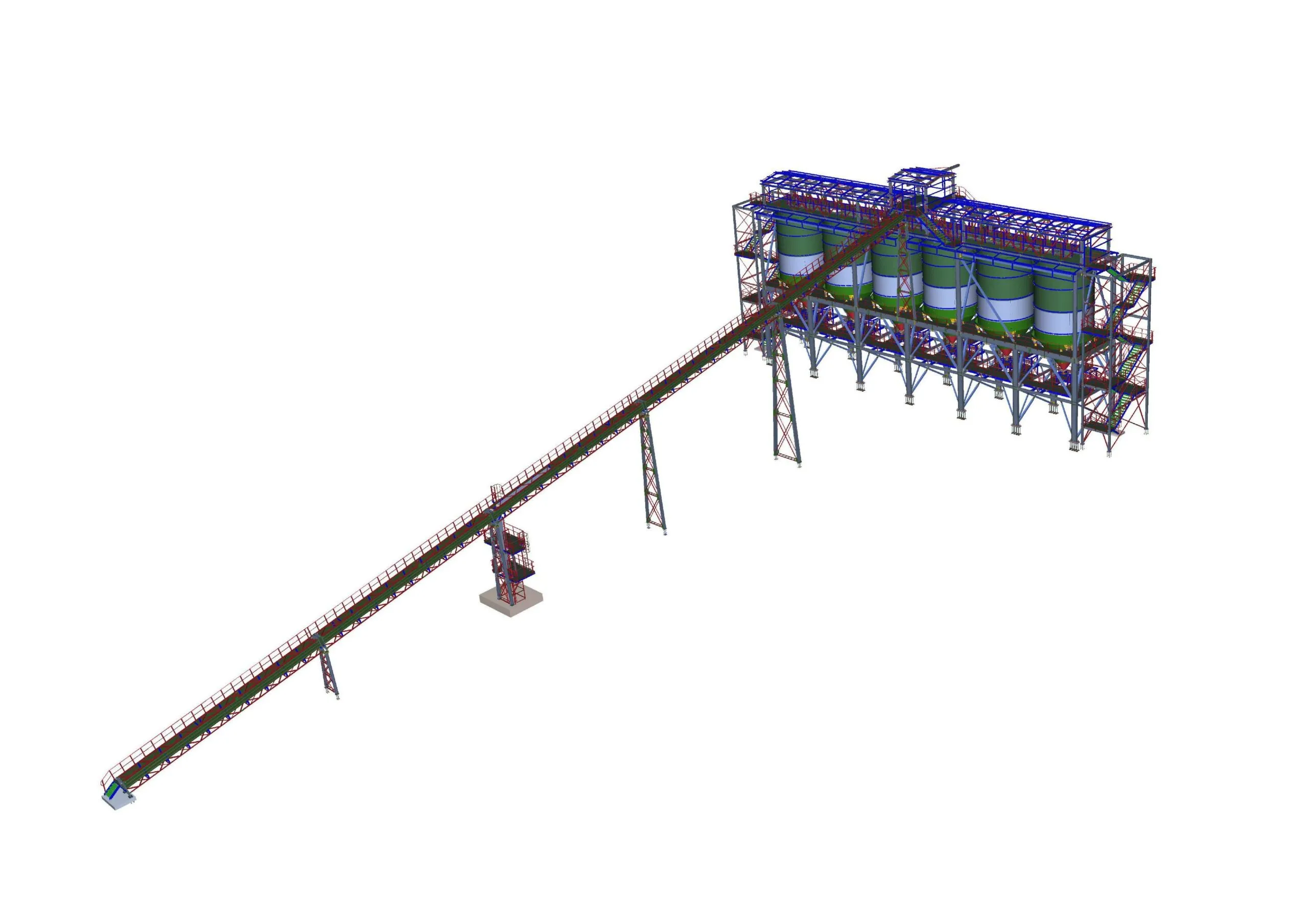

Systems
Stackers, trippers, shuttle and movable conveyors to build stockpiles; scraper reclaimers in full-portal, semi-portal and side configurations to reclaim them — for iron ore, fertilizers, aggregates, coal, woodchips, grain and more.
| Reclaimer capacity | up to 1,500 t/h |
|---|---|
| Span | up to 60 m |
| Operation | fully automatic |
Engineering
Services
Senior engineers with many years of experience in handling systems, working with specialists in conveyor equipment, belt technology, auxiliary systems and automation.
Applications
Send us the material, capacity and layout — or the equipment you need parts for.
